First MeerKAT radio telescope antenna foundation laid

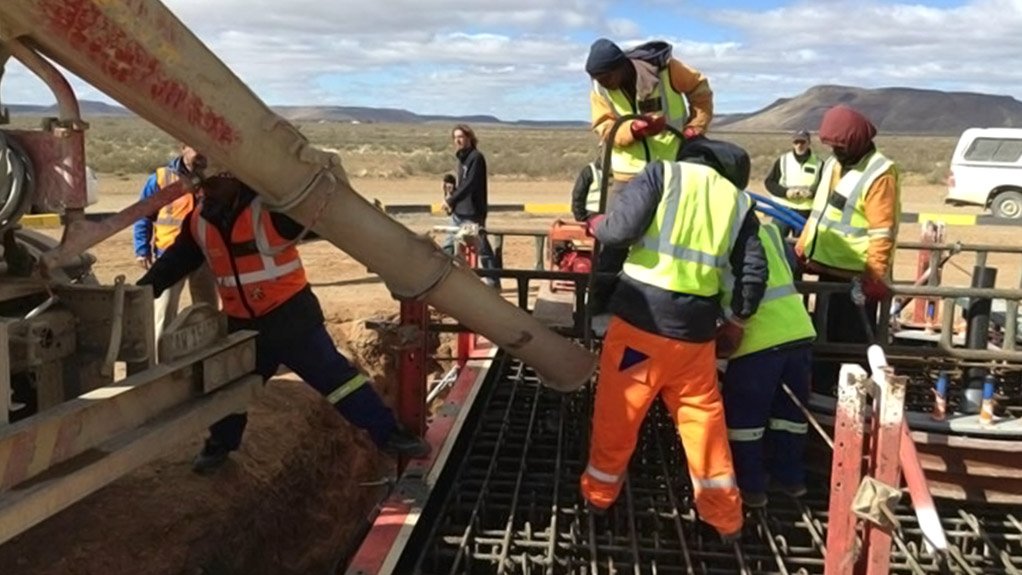

Pouring the concrete for the first MeerKAT dish foundation
Photo by SKA SA

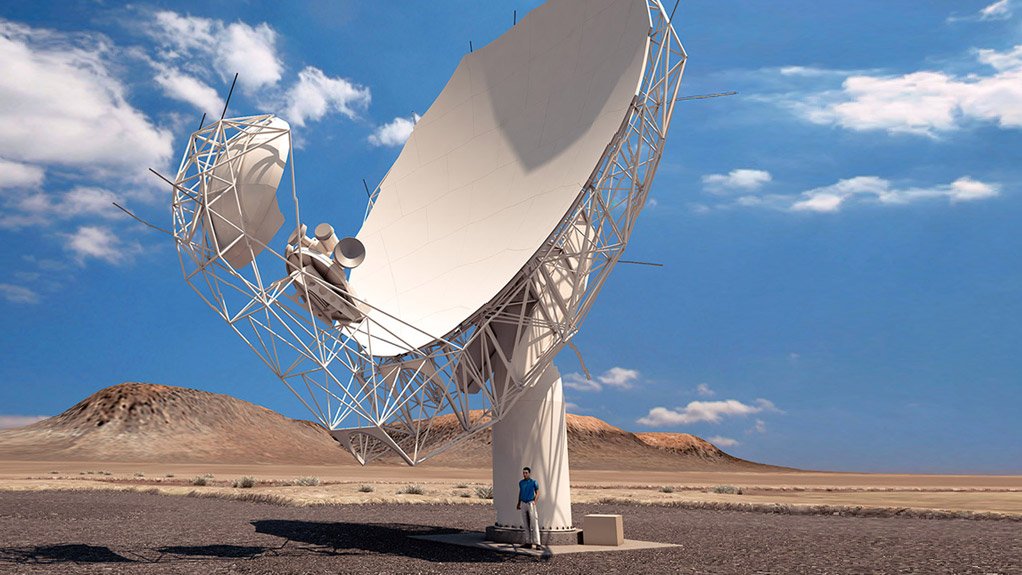

An artist’s impression of a completed MeerKAT dish
Photo by SKA SA
The concrete foundation for the first of 64 dishes for South Africa’s MeerKAT radio telescope array was laid on Wednesday. The MeerKAT is the successor to the recently-built and now operational seven dish KAT-7 radio telescope array and a precursor to the international Square Kilometre Array (SKA) radio telescope, the major part of which will be sited in South Africa. KAT-7 and MeerKAT are programmes of SKA South Africa (SKA SA).
The foundation contains 9 t of steel and 78 m3 of concrete. “Designing a foundation for a high-tech telescope is complex and challenging since it has to meet a set of stringent requirements,” explained SKA SA GM: infrastructure and site operations Tracy Cheetham.
The design of the foundations comprises eight steel-reinforced concrete piles, at depths of 5 m to 10 m (depending on the soil), with a 1.25-m-thick, 5.2 m by 5.2 m square slab of concrete placed on top of them, to increase stability. There are 32 pre-assembled ‘holding down’ bolts, arranged in a circle, forming a steel ring cage, into which the concrete is poured.
“The foundations must ensure that each of the 19-m-high antennas with its 13.5 m by 16 m main reflector will be exceptionally stable and able to point accurately at distant celestial objects at wind speeds gusting up to 69 km/h as well as survive wind speeds of up to 144 km/h,” she reported. “Another challenge for the design team was to ensure that each antenna was carefully earthed and would not be damaged in the event of a lightning strike.”
The foundations are being constructed by contractor Brink & Health Civils. “This first foundation will now be verified through a series of load tests to ensure that all specifications have been met,” stated Cheetham. “Getting this absolutely right is critically important for the science to be done with this instrument, and will also inform the construction of foundations for other SKA dishes to be built in the Karoo.”
