Name and Location

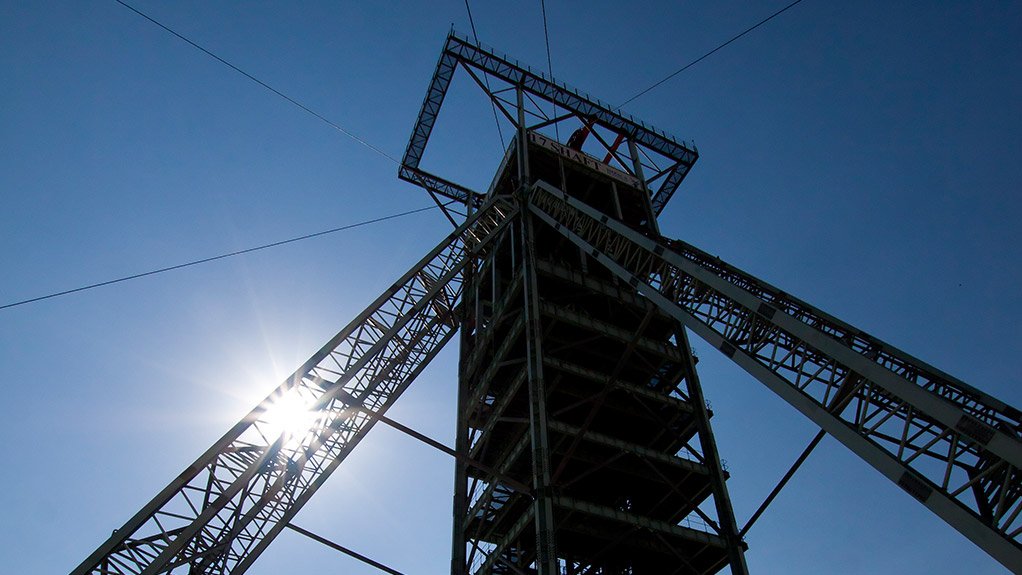

Impala No 17 Shaft project, Rustenburg, North West, South Africa.

Client
Impala Platinum (Implats).

Project Description
The No 17 Shaft project is a tonnage-replacement project for the Impala Rustenburg operations and is located down dip of No 10 shaft. The shaft complex is designed to produce 225 000 t/m (2.7-million tonnes a year) of reef from eight operational levels, equating to 180 000 oz of platinum at full capacity. The shaft will access the Merensky and upper group two reef horizons.

The entire mine design is conventional, with horizontal crosscuts to reef on 32 half levels.

The shaft complex comprises three vertical concrete-lined shafts, namely a rock and men-and-materials shaft (10 –m-lined diameter), a dedicated down cast chilled air (fridge) shaft (6-m-lined diameter) and an up cast ventilation shaft (9-m-lined diameter). A total 1 300 kg/s of chilled air will be down cast through the rock and men-and-materials shaft, and the fridge shaft, to cool and ventilate the underground workings.

A Koepe winder will hoist the rock to surface before ore is transported to the plant by rail, while a second Koepe winder will transport men and materials. The shaft will produce 180 000 platinum ounces a year at steady state.

Value
R11.1-billion.

Duration
Full production of 180 000 oz/y of platinum is expected to be reached in 2023.

Latest Developments
Implats has reported in its results for the year ended June 31, 2014, that No 17 shaft was affected by contractor performance challenges and was further slowed down during the year, as a result of cash preservation measures relating to the strike. As a result, ore reserve development did not start.

First production from this shaft is now only expected in the 2020 financial year, which is one year later than previously planned. Ramp-up to full production is expected to take five years.

Key Contracts and Suppliers
WorleyParsonsTWP (engineering, procurement and construction management); Scribante (earthworks); Murray & Roberts, or M&R (civils); Shaft Sinkers (ventilation, main and refrigeration shafts); Louwill Engineering (building structures); NIC Electrical & Instrumentation Construction (construction and instrumentation); Grinaker-LTA (shaft headgear erection contract); DRA Technical Services, ABB, Siemag Tecberg, Coilmec, Actom, Siemens and Winder Controls (supply of winders for the project); BBE Projects (turnkey design, construction and commissioning of the refrigeration plant and air cooler system) and Johnson Controls, subcontracted by BBE Projects (supply of chiller system).

On Budget and on Time?
First production from No 17 shaft is expected in the 2020 financial year, one year later than previously planned.

Ramp-up to full production is expected to take five years.
